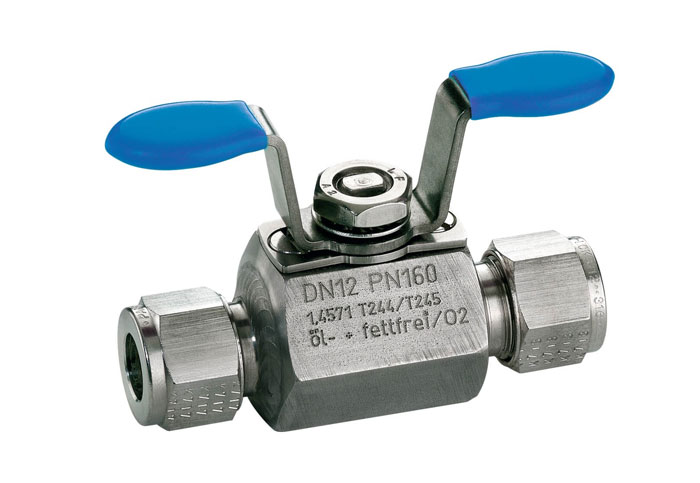

INTEC K150
Mini plant ball valve for clamping ring connection.
Features
- DN 8 - DN15
- one-piece ball valve
- soft seated
- floating ball
- for pipe outside diameter 6mm - 18mm
- FTF dimensions acc. to producers standard
- clamping ring connection
- fit for Swagelok, Gyrolok and Parker
| Material | Material Code | Nominal diameter | Pressure | Temperature |
|---|---|---|---|---|
| stainless steel | 1.4571/1.4404 | DN 8 - DN 12 | PN 250 | -50°C up to +260°C |
| stainless steel | 1.4571/1.4404 | DN 8 - DN 15 | PN 160 | -50°C up to +260°C |
| stainless steel | 1.4571/1.4404 | DN 15 | PN 100 | -50°C up to +260°C |
